FEATURES

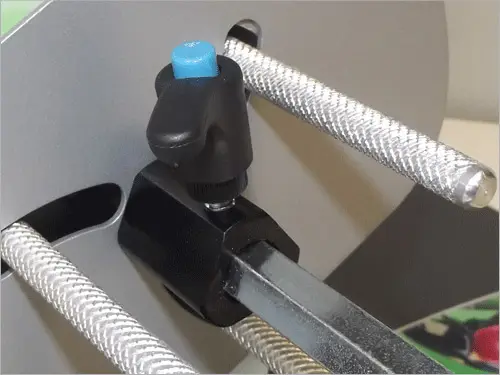

Our range of small label rewinders can handle labels up to 120mm (4.72") and rewind rolls with diameter up to 170mm (6.7"). Users can choose among 3 different types of core holder: the adjustable one from 40mm (1.57") up to 76mm (3"), 25mm (1") and 76mm (3") fixed core holder..

Rewinders are equipped with an external auto-switching 100/240V power supply and an electronic circuit controls the functions.

The motor speed is 120 rpm. When the roll of labels runs out, the rewinder stops by uttering an acoustic signal. The possibility to adjust the sense of rotation, clockwise or counterclockwise, allows to rewind the labels face in or face out.

The tension arm adjusts the speed of rotation: when it is down, the rewinder turns at full speed, whereas when the tension arm is up, the rewinder is idle and blocks the motor’s rotation when the printer stops.

Our small label rewinder series is available in three different versions and every model is marked by its own code.


"All-in-one" version (SRAP - SR4P)

If our small label rewinder is used as a support for printers with "feedback" (the printer pull back the paper to check the gap before printing), it will must have an "All-in-one" circuit to ensure the unwinding of roll, following the movement of the printer. The unit keeps all other features unchanged.


Brochure

M O D E L S
SRA SR1 SR4 SRAP SR4P
SRA SR1 SR4 SRAP SR4P

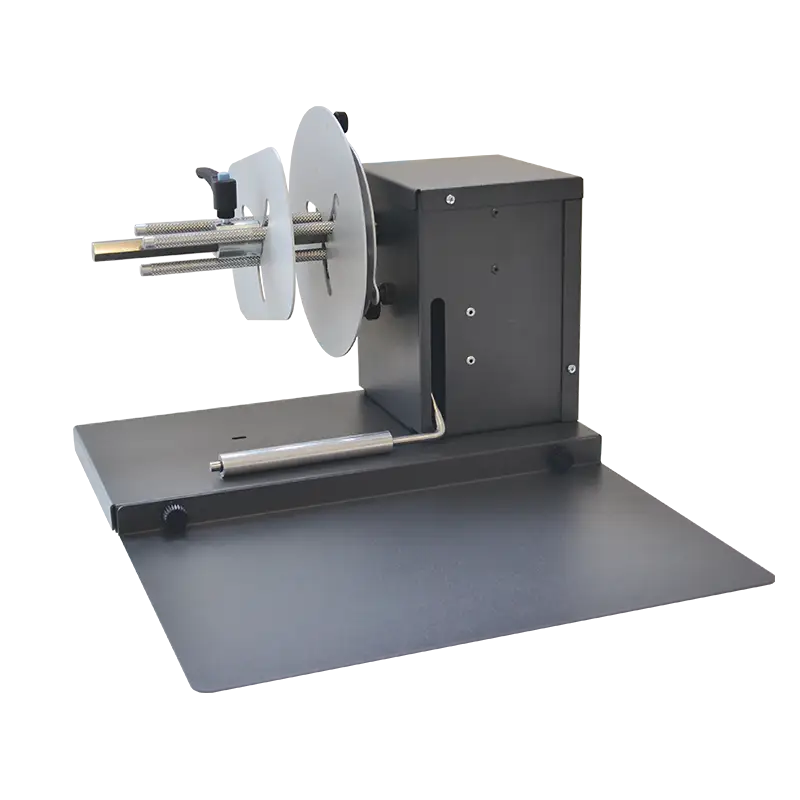

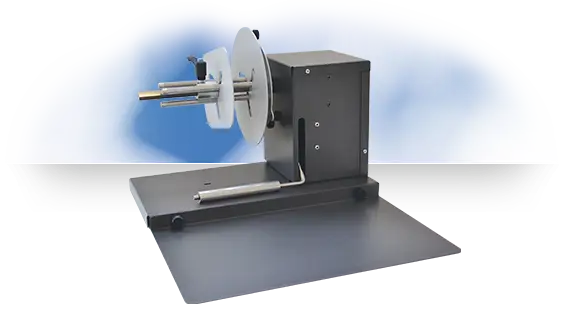

Small Rewinder
with adjustable core holder
Small Rewinder
with 25mm (1")
fixed core holder

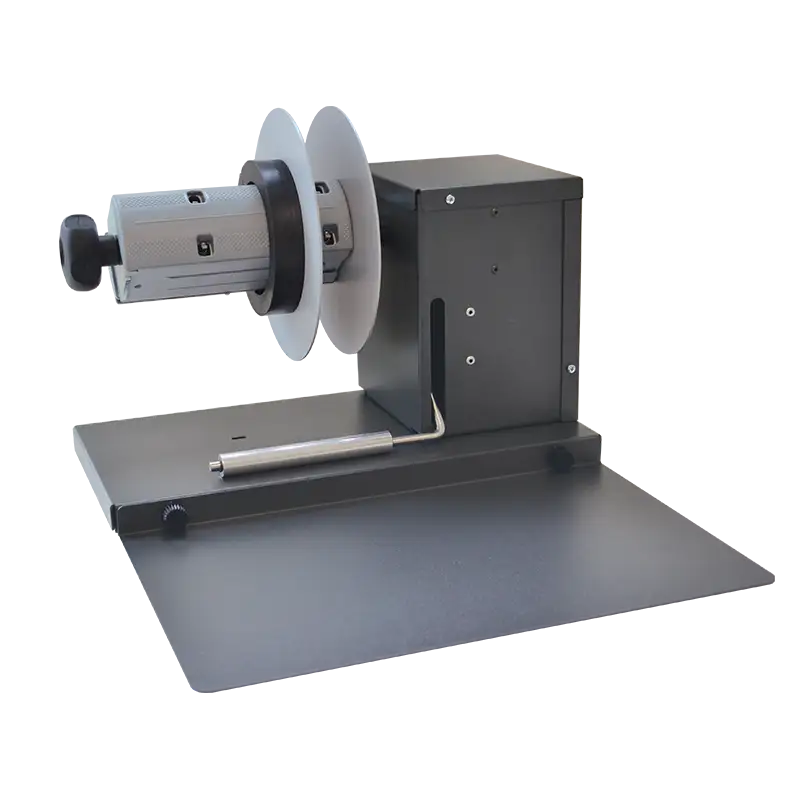

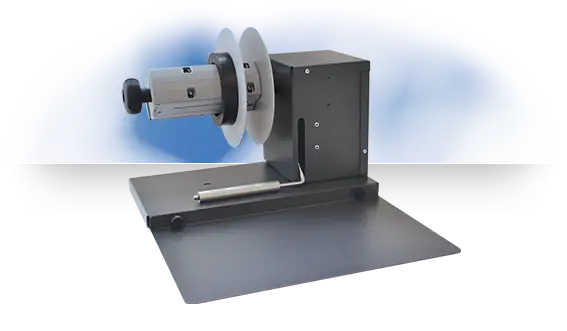

Small Rewinder
with 76mm (3")
fixed core holder
Small Rewinder "All-in-one"
with adjustable core holder
Small Rewinder "All-in-one"
with 76mm (3")
fixed core holder
