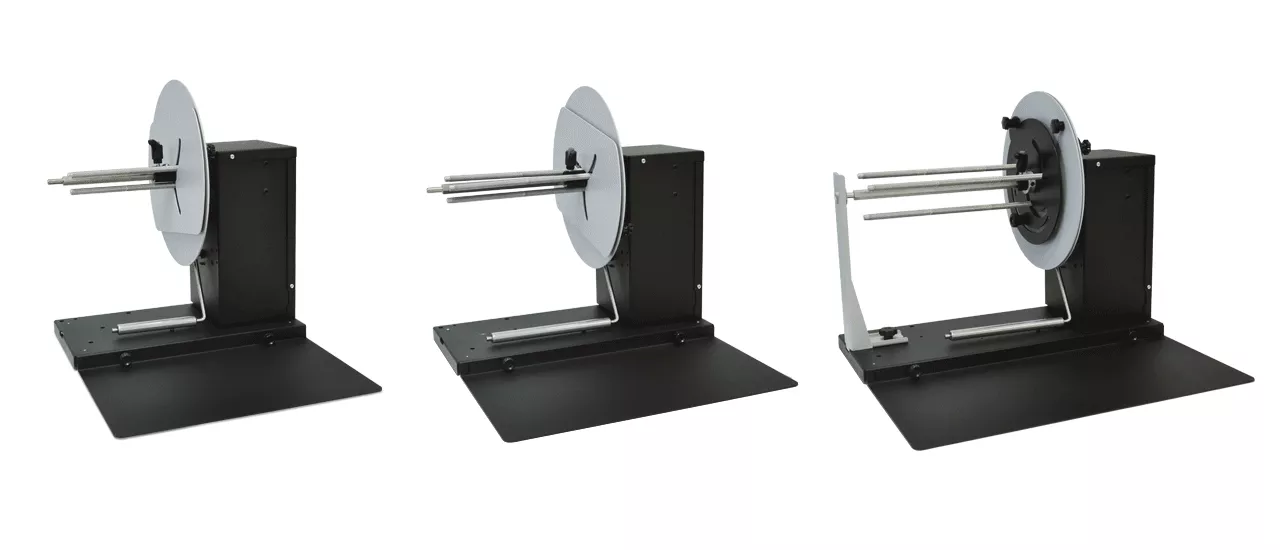

Our range of label rewinders can handle labels up to 127mm (5"), 174mm (6.85") and 244mm (9.60") wide and rewind rolls with diameter up to 250mm (9.84") and 300mm (11.81"). Users can choose among 3 different types of core holders: the adjustable core holder from 40mm (1.58") to 118mm (4.64") and the 25mm (1") or 76mm (3")fixed core holders.
- Label’s width up to 244mm (9.60")
- “L” support for the heavy rolls
-Adjustable or fixed core holder
TYPE | ROLL DIAMETER |
SPEED | LABEL WIDTH | CORE HOLDER | SUPPORT |
---|---|---|---|---|---|
AD Rewinder |
1 250mm (9.84") |
1 120 rpm |
1 127mm (5") |
1 40mm - 118mm (1.57" - 4.64") |
S0 Without support |
2 300mm (11.81") |
2 225 rpm |
2 174mm (6.85") |
3 25mm - 76mm (1" - 3") (*) |
S1 Roll diameter 250mm (9.84") |
|
3 244mm (9.60") |
4 76mm (3") fixed |
S2 Roll diameter 300mm (11.81") |
|||
S4 76mm (3") Fixed core holder |
Configuration example: AD 1 2 1 4 - S4
(*)Available on model AD with roll diameter 250mm (1), speed 225 rpm (2), label width 127mm (1) only. Correct model is AD1213-S0

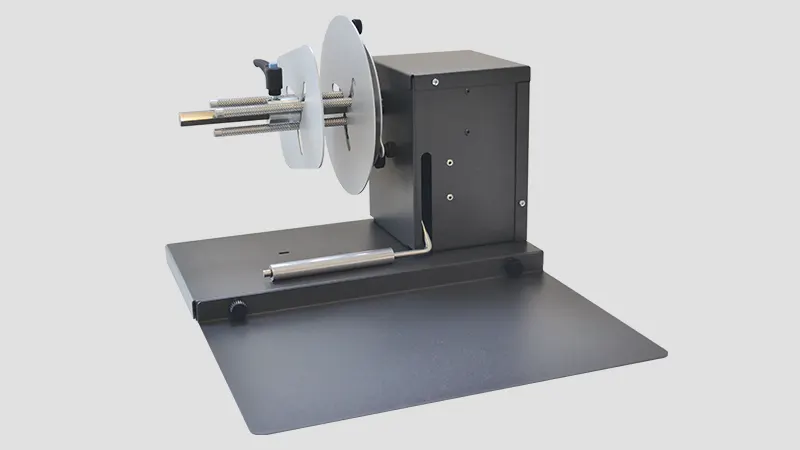

Our range of small label rewinders can handle labels up to 120mm (4.72") and rewind rolls with diameter up to 170mm (6.7").
Users can choose among 3 different types of core holder: the adjustable one from 40mm (1.58") up to 76mm (3") and 76mm (3") fixed core holder.
- Label’s width up to 120mm (4.72")
- Adjustable or fixed core holder

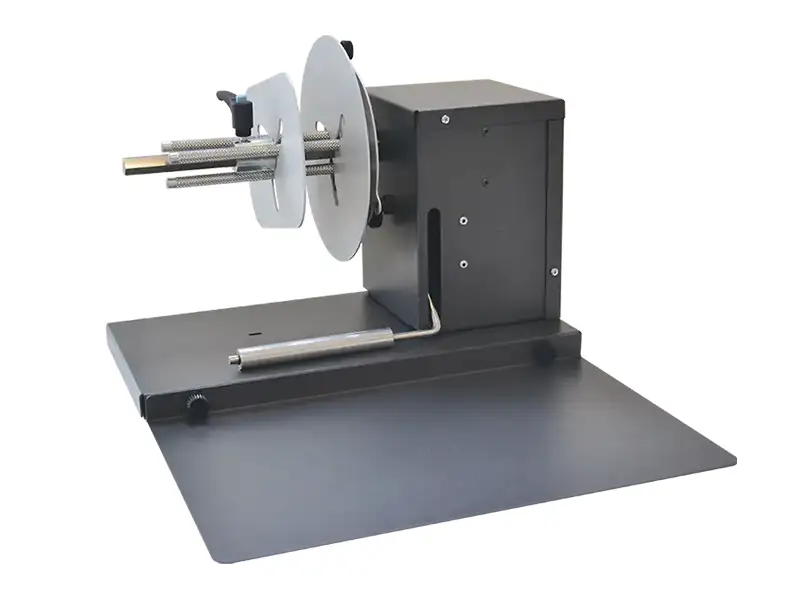

Small Rewinder with
adjustable core holder

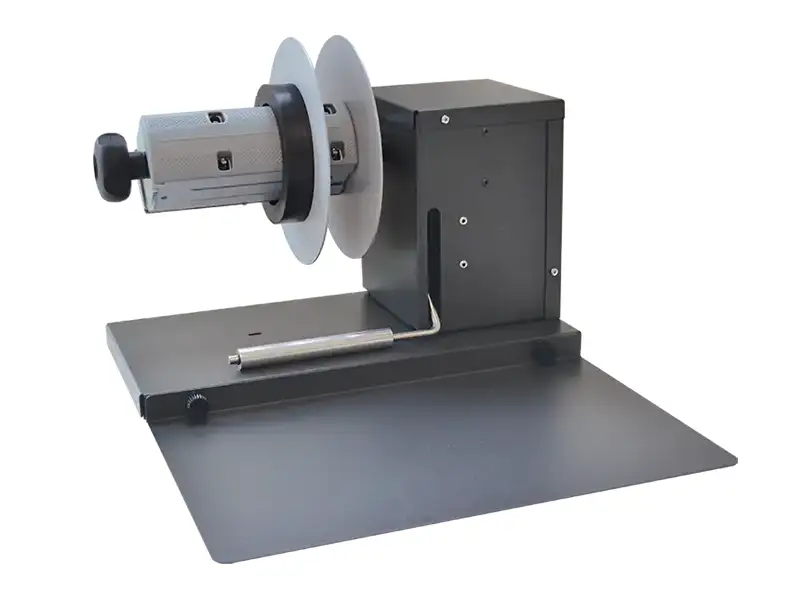

Small Rewinder with
76mm (3") fixed core holder

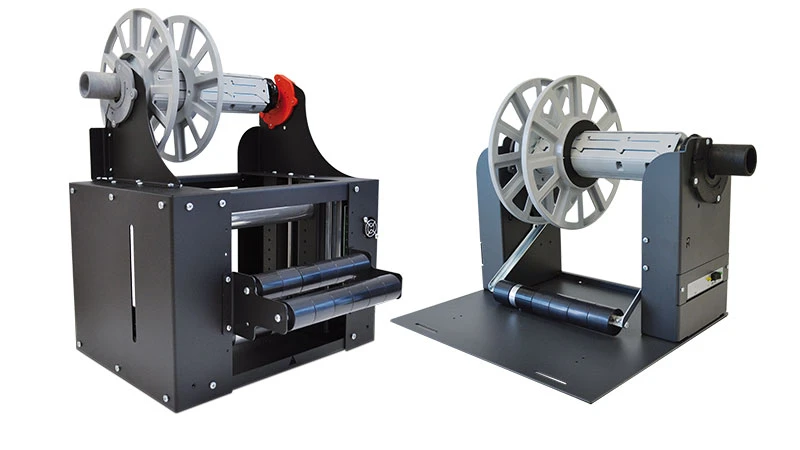

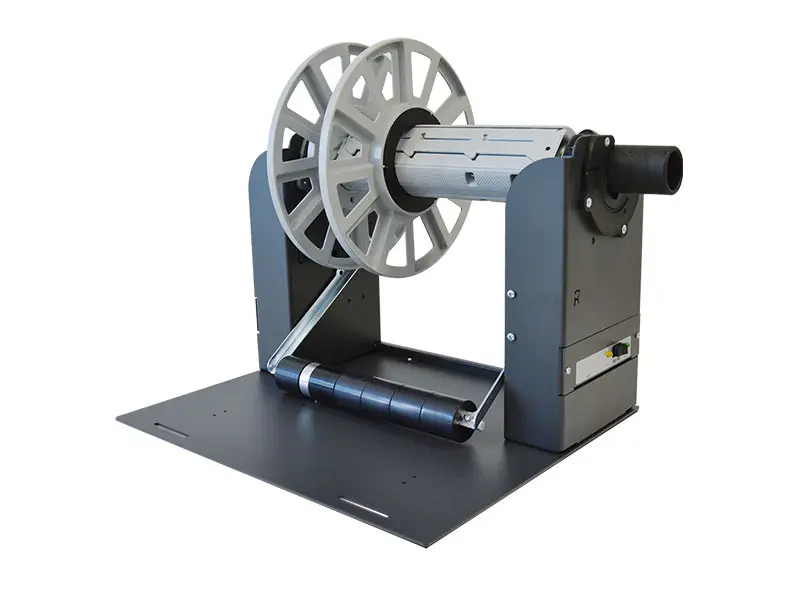

Our range of Motorized Core Holders can handle labels up to 240mm (9.45") wide and rewind or unwind rolls having outside diameter up to 250mm (9.84").
Rolls are rewinded/unwinded onto a 76mm (3") core holder and the possibility to adjust the sense of rotation, clockwise or counterclockwise, allows to rewind labels both face in and face out (only "SW" models).

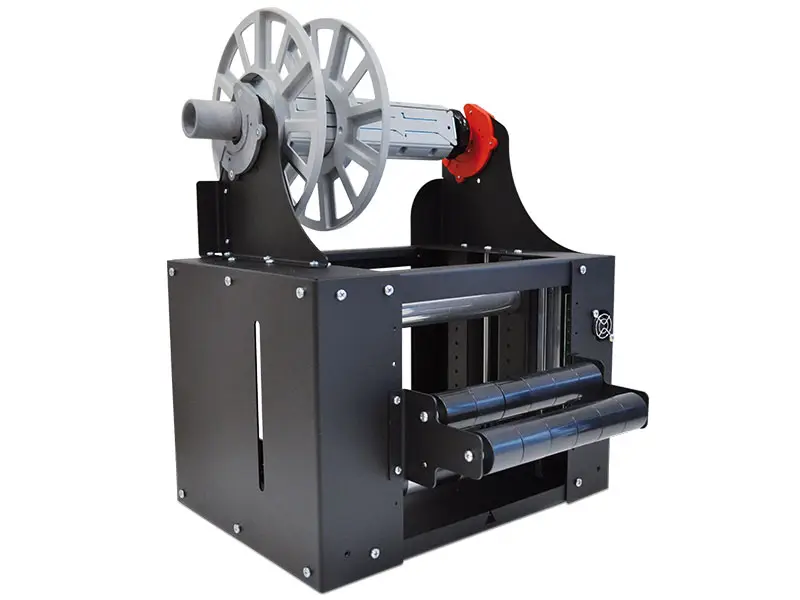

Motorized Core Holder XL
Our MCH XL Rewinders & Unwinders are the perfect companions to most digital inkjet label printers. Thanks to its revolutionary design and solidly manufactured quality, the MCH XLs are perfect for high usage and heavy duty jobs.
Maximum OD Roll 250mm (9.84")
Maximum Media Width 240mm (9.45")
Speed 51rpm
Maximum OD Roll 300mm (11.81")
Maximum Media Width 240mm (9.45")
Speed 51rpm
The ideal partner to digital label printers, a compact unwind-rewind system truly meant to meet the requirements of demanding jobs. Equipped with motors that ensure heavy rolls are handled with ease, this is a solution that improves the efficiency of digital label printing platforms.
- ROLL TO ROLL SYSTEMS FOR EPSON
(TM-C3500 - C831 - C7500 - C6500A/P - C6000A/P - C4000)
- ROLL TO ROLL SYSTEMS FOR PRIMERA
(LX900 - LX1000 - LX2000)
- ROLL TO ROLL SYSTEMS FOR VIPCOLOR
(VP485 - VP495)
- ROLL TO ROLL SYSTEMS FOR SWIFTCOLOR
(SCL-4000D)
- ROLL TO ROLL SYSTEMS FOR OKI PRINTERS
As one of the leaders in the label industry, D.P.R. is committed to producing quality labeling equipment such as label rewinders and unwinders, label dispensers, automatic label counters as well as finishing equipment like label slitters, matrix remover & slitting systems, and digital label finishing using cutting plotter and laser technologies.
With headquarters in Milan, Italy and a branch in Sunrise FL, USA, D.P.R. provides superior solutions for the labeling industry, serving both the domestic and international markets.
