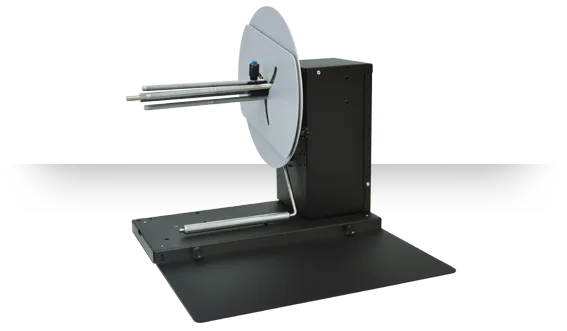

Label Rewinder
FEATURES

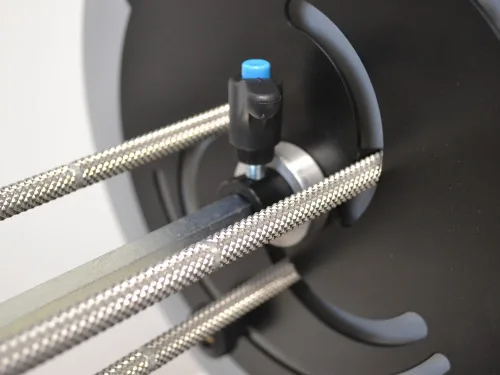

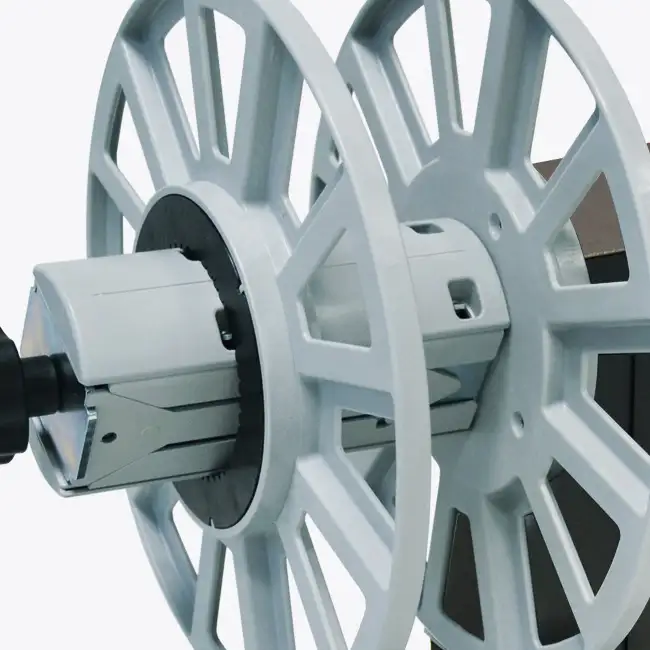

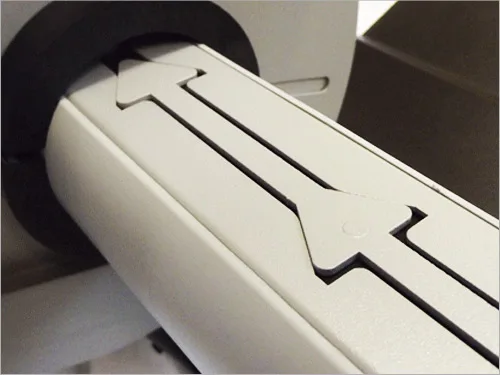

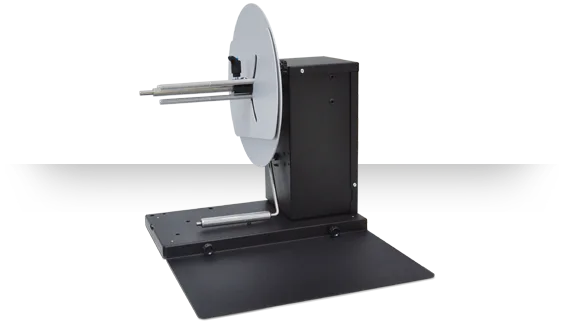

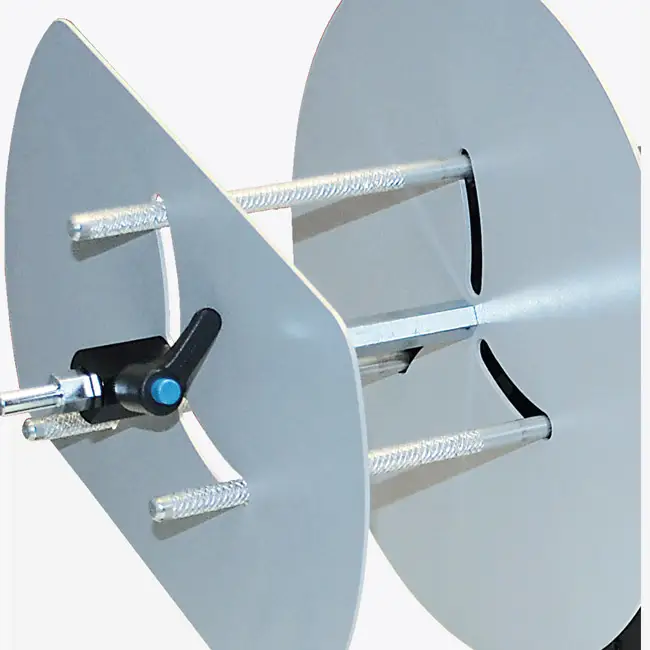

Our range of label rewinders can handle labels up to 127mm (5"), 174mm (6.85") and 244mm (9.60") wide and rewind rolls with diameter up to 250mm (10") and 300mm (11.81"). Users can choose among 3 different types of core holders: the adjustable core holder from 40mm (1.57") up to 118mm (4.64"), from 25mm (1") up to 76mm (3") and 76mm (3") fixed core holders.

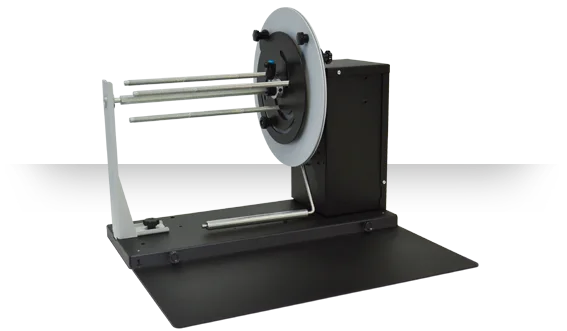

It is possible to add an optional support for heavy rolls (if the unit is equipped with support, the core holder is adjustable 46mm-118mm (1.81"-4.64")). Rewinders are equipped with an external auto-switching 100/240V
power supply and an electronic circuit controls the functions.

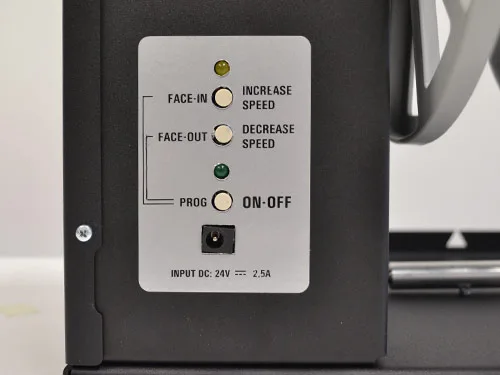

When the roll of labels runs out, the rewinder stops by uttering an acoustic signal. The possibility to adjust the sense of rotation, clockwise or counterclockwise, allows to rewind the labels face in or face out.

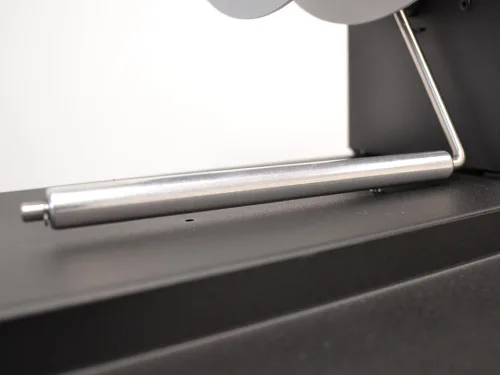

The tension arm adjusts the speed of rotation: when it is down, the rewinder turns at full speed, whereas when the tension arm is up, the rewinder is idle and blocks the motor’s rotation when the printer stops.
Our label rewinder series is available in different versions and every model is marked by its own code. Through the configuration table below, it is possible to select the version better fitting your needs and to obtain the code of the product to order.
Thermal Label Printers
With the growing number of different types of thermal label printers hitting the market, we are sure to carry the right label rewinder to match. You can also check out our line of dispensers to help you with a smooth clean label application process.
Find these and more for all the major brands of thermal label printers on the market.
Our label rewinders work with the following major brands of thermal label printers (and others):
-
Zebra direct thermal printer & Zebra thermal transfer printer
- Datamax direct thermal printer & Datamax thermal transfer printer
- SATO direct thermal printer & SATO thermal transfer printer
- Toshiba direct thermal printer & Toshiba thermal transfer printer
- Intermec direct thermal printer & Intermec thermal transfer printer
- ...
Brochure | User Manual |
| TYPE | ROLL DIAMETER |
SPEED | LABEL WIDTH | CORE HOLDER | SUPPORT |
|---|---|---|---|---|---|
| AD Rewinder |
1 250mm (10") |
1 120 rpm |
1 127mm (5") |
1 40mm - 118mm (1.57" - 4.64") |
S0 Without support |
| 2 300mm (11.81") |
2 225 rpm |
2 174mm (6.85") |
3 25mm - 76mm (1" - 3") (*) |
S1 Roll diameter 250mm (10") |
|
| 3 244mm (9.60") |

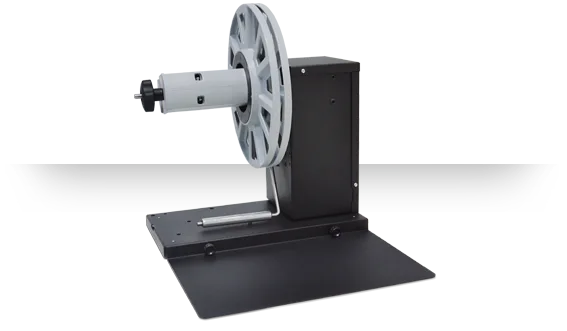

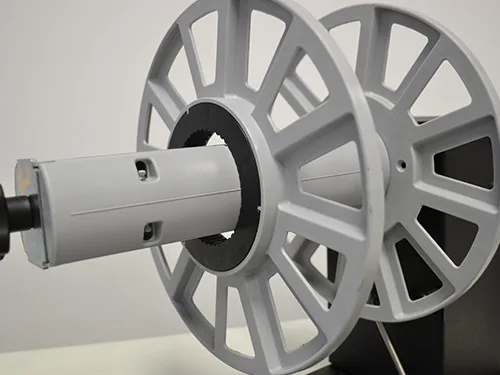

4 76mm (3") fixed |
S2 Roll diameter 300mm (11.81") |
|||

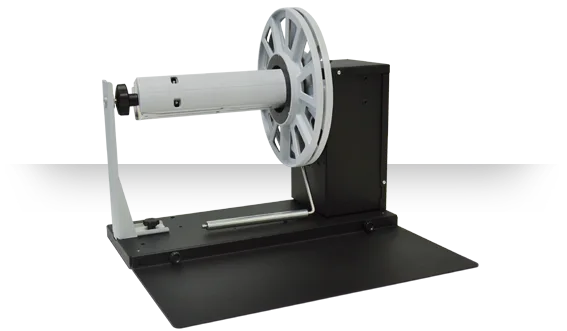

| S4 76mm (3") Fixed core holder |
Configuration example: AD 1 2 1 4 - S4
(*)Available on model AD with roll diameter 250mm (1), speed 225 rpm (2), label width 127mm (1) only. Correct model is AD1213-S0
| 40-118mm CORE HOLDER | 3" FIXED CORE HOLDER |
|---|---|
 |
 |
| MODELLI | LUNGHEZZA | LARGHEZZA | ALTEZZA |
|---|---|---|---|
| ADxx1x-Sx | 43cm | 35cm | 36cm |
| ADxx2x-Sx | 43cm | 40cm | 36cm |
| ADxx3x-Sx | 43cm | 45cm | 36cm |
