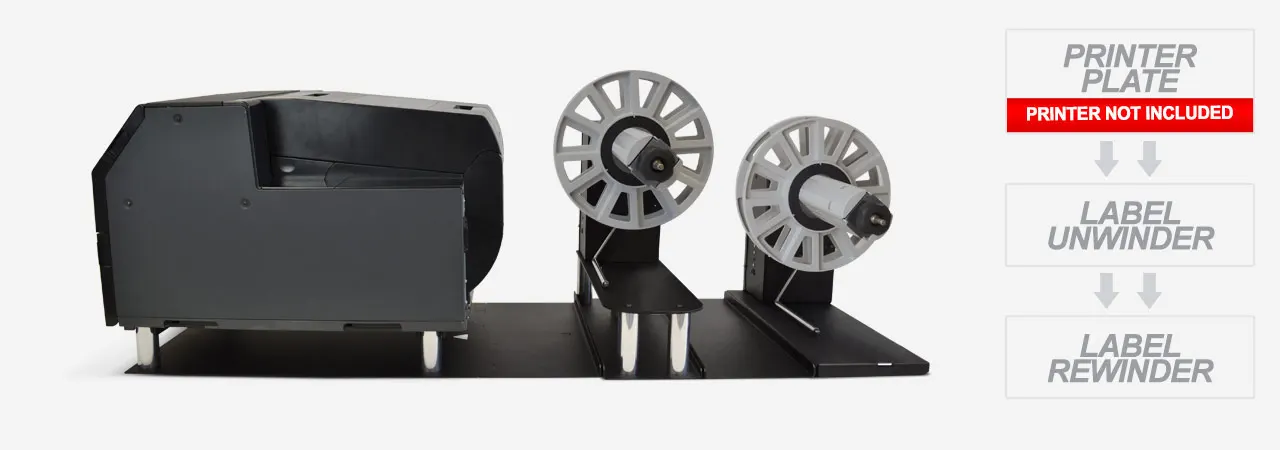

Roll to Roll System for Epson C6000P printer

label unwinder/rewinder for Epson C6000P printers

FEATURES


The unwinder and rewinder specifically designed for Epson C6000P color label printer can handle rolls up to 127mm (5") media wide and having an outside diameter up to 250mm (10"). Both Unwinder and Rewinder are equipped with a fixed 3” core holder.

The printer will be locked over the printer plate.
This way the correct unwinding / rewinding operations are guaranteed and units are safely aligned with the printer.

An external power supply 100/240VAC - 2.5A Direct current at 24V allows an electronic circuit to provide, through the tension arm, the automatic adjustment of the rotation direction and speed.





Brochure | User Manual |

M O D E L S
UW6000P RW6000P
label unwinder EPSON C6000P label rewinder EPSON C6000P
Label unwinder
Roll diameter up to 250mm (10")
Media width up to 127mm (5")
3" fixed core holder
Label rewinder
Roll diameter up to 250mm (10")
Media width up to 127mm (5")
3" fixed core holder

P R I N T E R - P L A T E
JPL-6000P
Epson C6000P printer plate
Printer plate UW&RW for EPSON C6000P


SIZE
MODELS LENGTH WIDTH HEIGHT
UW6000P 23cm (9.05") 35cm (13.78") 41cm (16.14")
RW6000P 35cm (13.77") 35cm (13.78") 41cm (16.14")
JPL-6000P 66cm (25.98") 27cm (10.62") 9cm (3.54")
