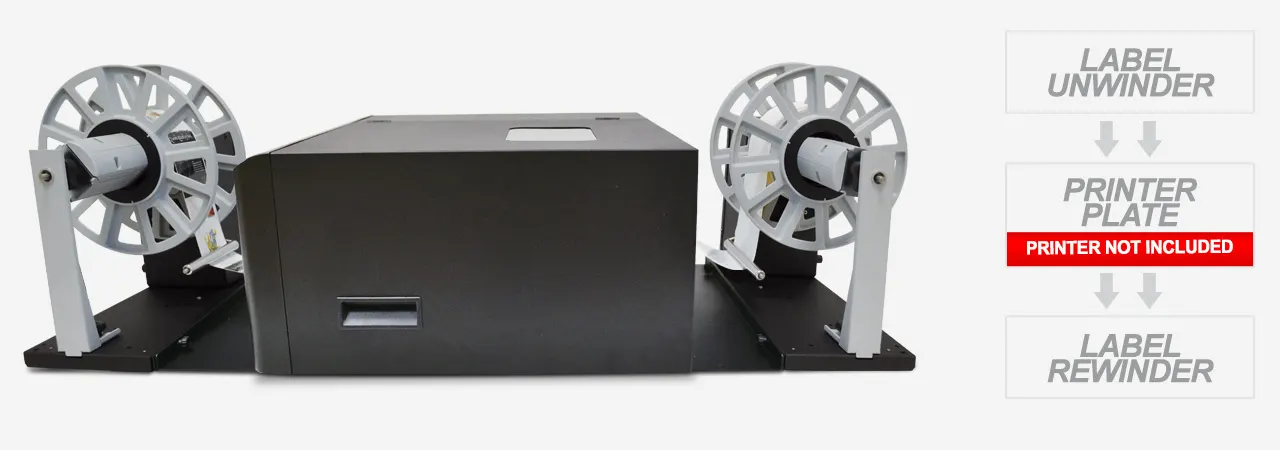

Roll to roll System for Primera LX series

label unwinder/rewinder Primera LX series

FEATURES


The unwinder and rewinder for Primera LX series printers (LX900/LX1000/LX2000) make it easy to unwind and rewind large quantities of labels. Capable of handling rolls up to 250mm (10") diameter and 220mm (8.66") wide, these units improve manufacturing production speed and streamlining the label unwinding / rewinding process.

An essential component for any production line requiring zero risk to product label appearance.

The machines are completely independent.
If you use the internal label unwinder built into the printer, you can use an external label rewinder to print larger print runs and rewind your labels neatly. If you use label rolls whose diameter is larger than the maximum diameter of the internal label unwinder built into the printer, you can add an external label unwinder that would drastically reduce your label cost versus smaller rolls (larger label rolls = lower cost).

An external power supply 100/240VAC - 2.5A Direct current at 24V allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation speed and rotation direction. A 2A fuse is used as protection.

The unwinder and rewinder for Primera LX series printers (LX900/LX1000/LX2000) have two types of speed adjustments, through the two buttons it is possible to set the maximum speed required while the tension arm will auto adjust the speed from zero to the set value. The control panel allows to set the label rewinding face-in or face-out option.

When the roll of labels runs out, the device stops by uttering an acoustic signal.


Brochure | User Manual Rewinder | User Manual Unwinder |

M O D E L S
UP1234-S4 RP1234-S4
UP1234-S4 RP1234-S4
Label unwinder Label rewinder


SIZE
MODELS LENGTH WIDTH HEIGHT
UP1234-S4 54cm (21.25") 45cm (17.71") 36cm (14.17")
RP1234-S4 54cm (21.25") 45cm (17.71") 36cm (14.17")

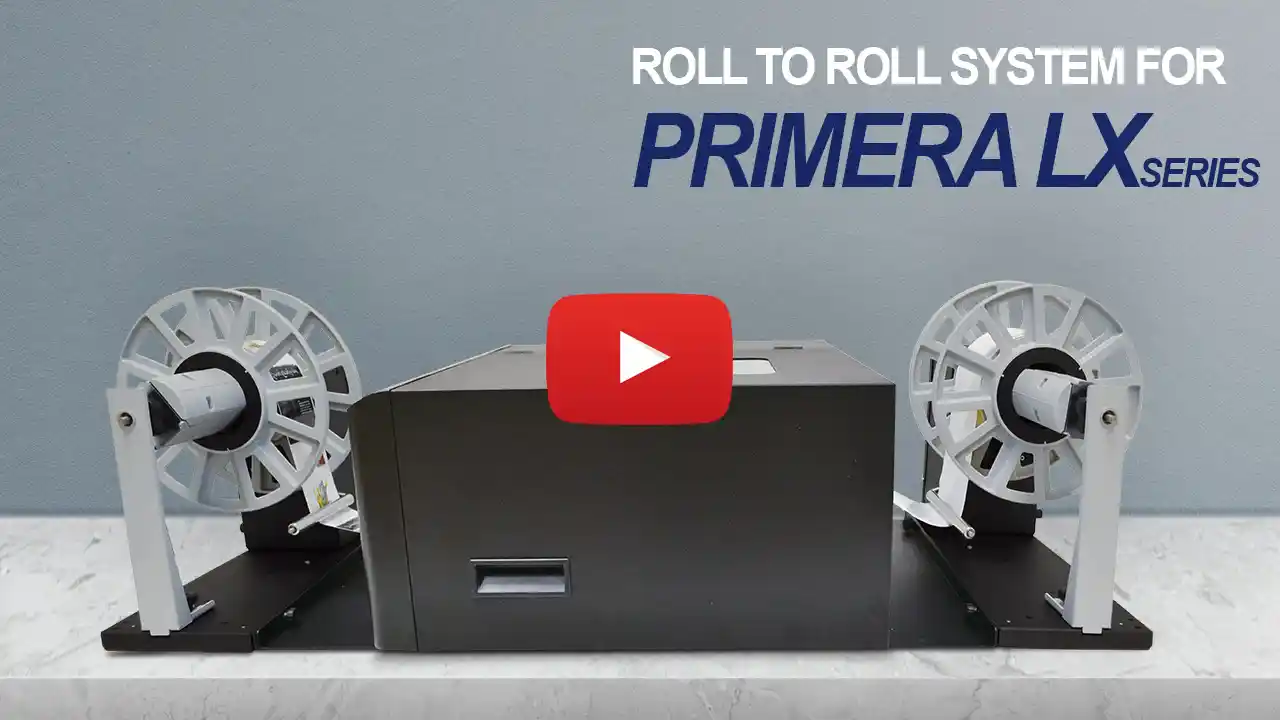

VIDEO




GALLERY

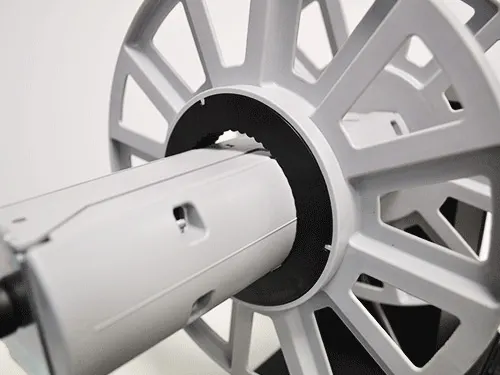

  • label rewinder and unwinder for primera LX printer detail

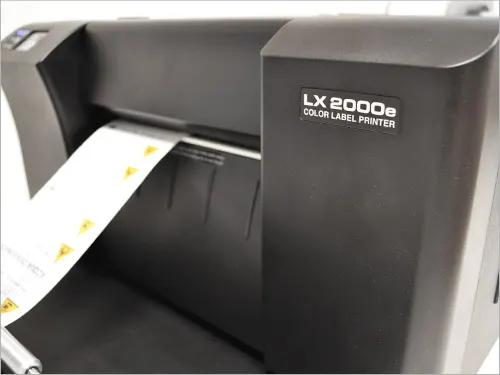

  • label rewinder and unwinder for primera LX printer detail

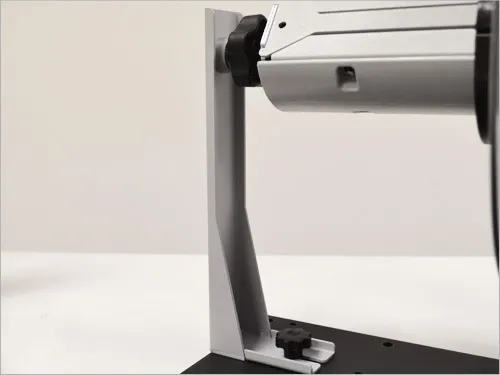

  • label rewinder and unwinder for primera LX printer detail

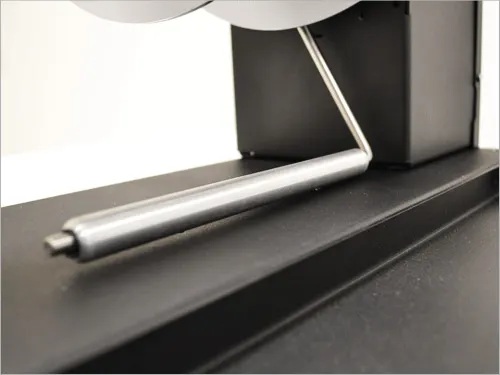

  • label rewinder and unwinder for primera LX printer detail

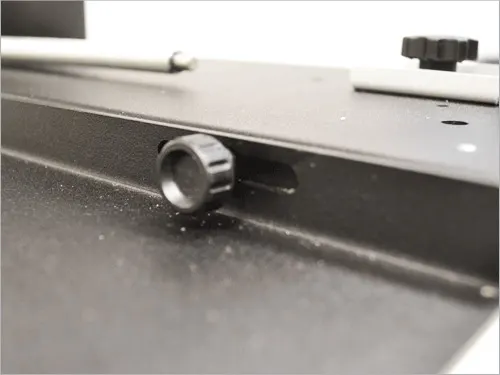

  • label rewinder and unwinder for primera LX printer detail

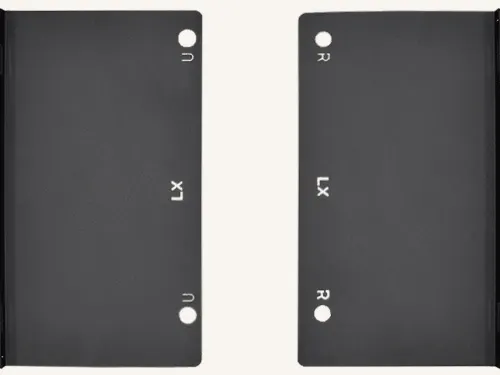

  • label rewinder and unwinder for primera LX printer detail
