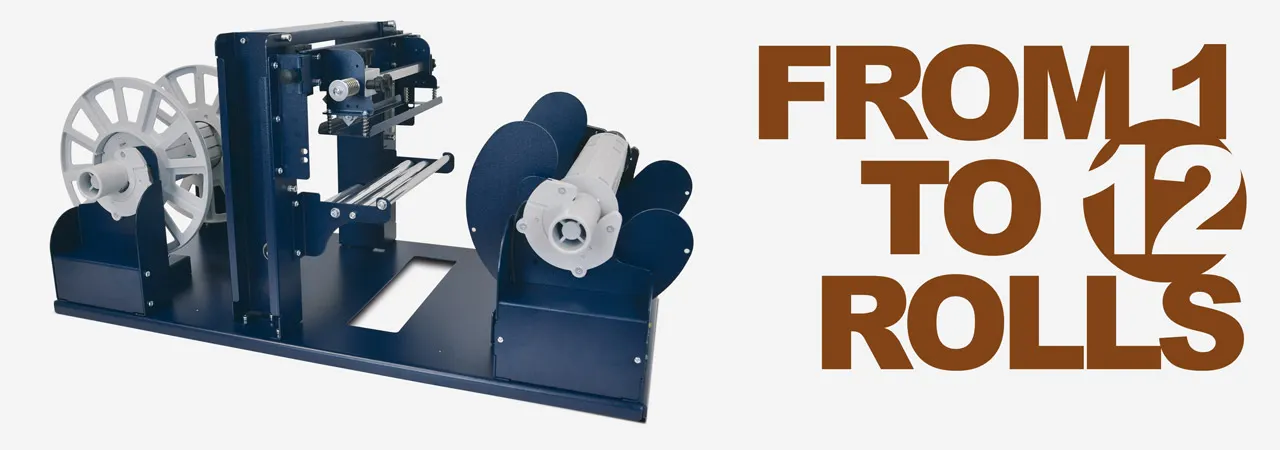

The longitudinal label slitter satisfies the present-day necessity to make the most of the print area with the possibility to obtain more rows of labels from the same roll, and then split it through the use of the slitter.

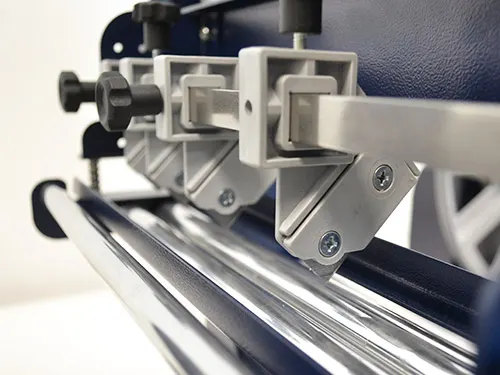

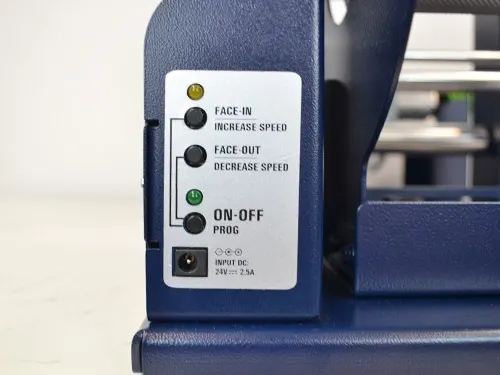

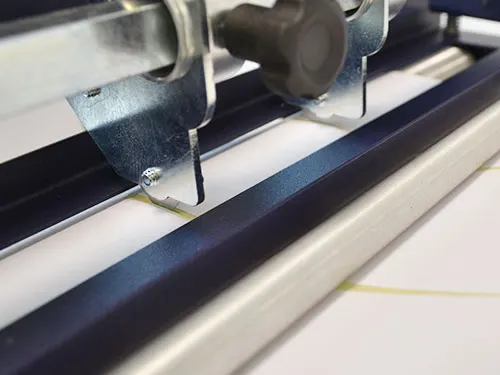

The cutting operations are done by a common cutter blade that is located in an apposite blade holder. The slitter has an external auto-switching 100/240V power supply and an electronic circuit controls all its functions.

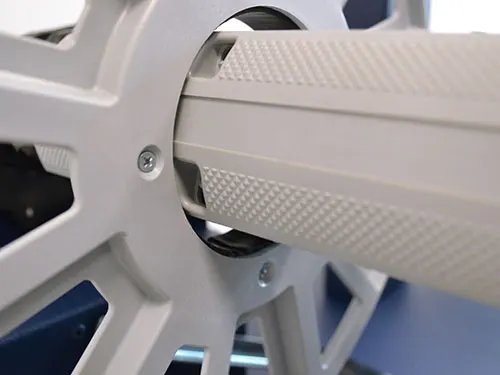

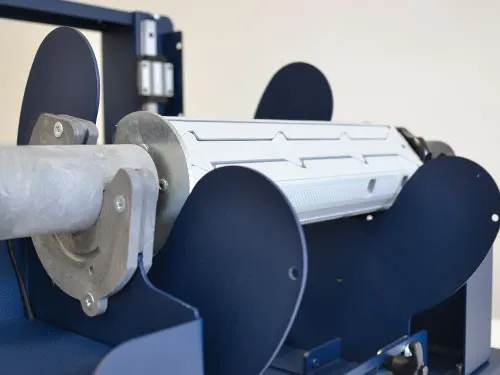

The longitudinal label slitter, equipped with two 76mm (3") fixed core holder is able to work rolls with a diameter of 250mm (9.84"). The maximum width of the roll is 220mm (8.66") and it is possible to obtain rows of labels not narrower than 22mm (0.87").

Work in-line with printers

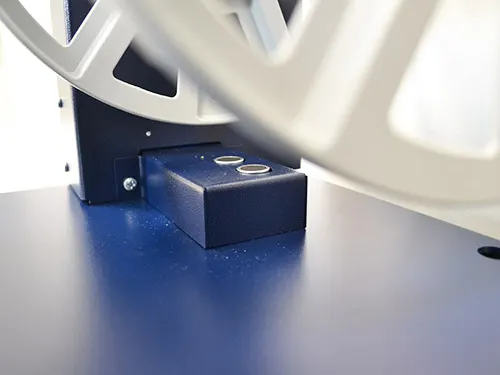

Thanks to the connector equipped with the device it is now possible to use the slitter "in-line" with your label printer.
