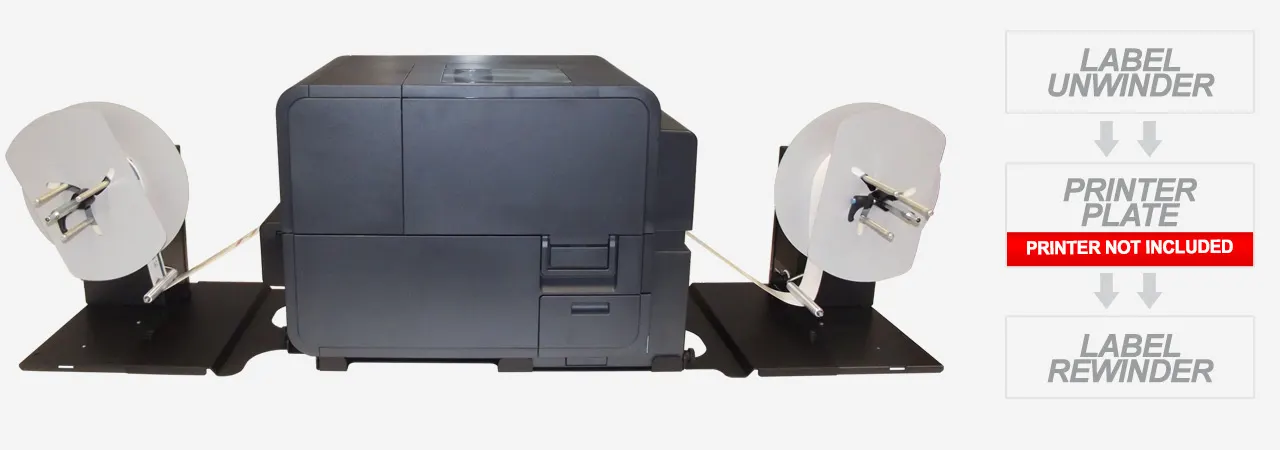

Roll to Roll System for Swiftcolor SCL-4000D

label unwinder/rewinder for Swiftcolor printer

FEATURES


The rewinder and unwinder for Swiftcolor SCL-4000D printers are used to manage rolls of media up to 127mm (5") having an outside diameter up to 250mm (10"). The users can select among the adjustable core holder 40mm - 118mm (1.57" - 4.64") and the 76mm (3") fixed.

An external power supply 100/240VAC - 2.5A at 24V Direct current allows an electronic circuit to provide, through the tension arm, the adjustment of the rotation’s speed and rotation’s direction.

The rewinder and unwinder for Swiftcolor SCL-4000D printers have two types of speed adjustments, through the two buttons it is possible to set the maximum speed required while the tension arm will auto adjust the speed from zero to the set value.

The control panel allows to set the label rewinding face-in or face-out option. When the roll runs out, the devices stop beeping.


Printer plate

printer plate for Swiftcolor SCL-4000D

To guarantee the media path aligned in the system, it is available the junction plate to connect the rewinder and unwinder together and where lean the SwiftColor printer.
Two slots allow you to perfectly align the printer with the unwinder and the rewinder.


Brochure

M O D E L S
ASS1111-S0 ASD1111-S0 ASS1114-S0 ASD1114-S0
ASS1111-S0 label unwinder for swiftcolor  printer ASD1111-S0 label rewinder for swiftcolor  printer ASS1114-S0 label unwinder for swiftcolor  printer ASD1114-S0 label rewinder for swiftcolor  printer
Label unwinder with
40mm-118mm (1.57"-4.64")
adjustable core holder
Label rewinder with
40mm-118mm (1.57"-4.64")
adjustable core holder
Label unwinder with
76mm (3")
fixed core holder
Label rewinder with
76mm (3")
fixed core holder

CORE HOLDER
40-118mm CORE HOLDER 3" FIXED CORE HOLDER
adjustable core holder fixed core holder


SIZE
MODELS LENGTH WIDTH HEIGHT
All models
(second plate included)
43cm (19.93") 35cm (13.78") 36cm (14.17")
Printer Plate
(SCL-JPL )
96cm (37.79") 36cm (14.17") /
