Label Accessories for OKI Pro Series Printers (Pro1050, Pro1040)

Labeling-accessories-OKI-Pro1050



IMPROVE YOUR WORKFLOW


The new labeling accessories designed specifically for OKI Pro Series Printers (Pro1050, Pro1040) will make the production and delivery of customized color labels on roll much easier.

Matrix Remover in a single pass process that removes the waste material from the pre die-cut media and rewinds the finished labels on a roll.

The compact and resistant Rewinder allows a synchronized printed media rewinding process on a 3” cardboard core.



About Pro Series Label Printers

A versatile, professional label printing for labels with impact! OKI’s Pro Series Label Printers are a true breakthrough in printing technology for the label industry.
On demand, professional four and five color narrow-format label printing is now possible in-house on a wide range of label media taking creativity and flexibility to a new level.



  • Matrix-remover-OKI-PRO1050

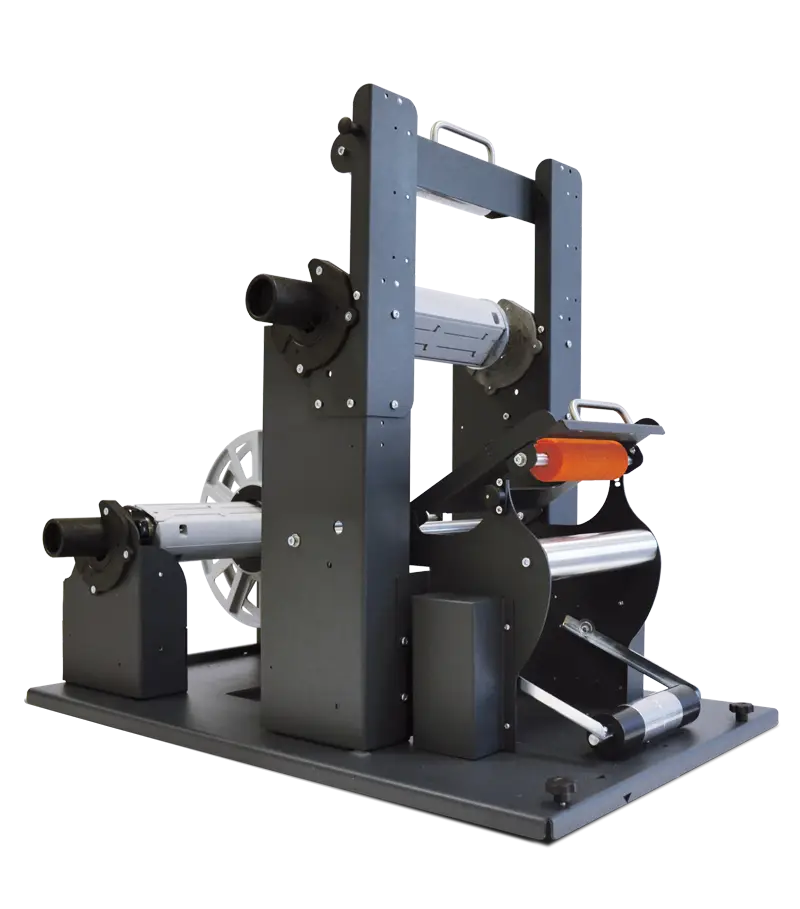

  • Inline Matrix remover for OKI Pro Series Printers (Pro1050, Pro1040)

    Designed to be installed and work in-line to OKI Pro Series Printers (Pro1050, Pro1040), the Matrix Remover is an all-in-one system capable of removing the waste material from the pre die-cut media and rewinding on a 3” cardboard core with the finished printed labels face out.

    The unit is equipped with an external auto-switching 100/240VAC - 2.5A at 24V power supply and an electronic circuit in charge of controlling the functions.

    Perfect bleed labels can be achieved on pre die cut media after the waste material is removed from your artwork with this matrix intact.

    The production of edge-to-edge printed labels on roll will become extremely easy and quick.

    Outside diameter up to 250mm (9.84”)

    Media width up to 170mm (6.69”)

    3” fixed core holder


    SIZE
    LENGTH WIDTH HEIGHT
    73cm (28.74") 44cm (17.32") 63cm (24.80")
    SECOND PLATE
    34cm (13.38") 44cm (17.32") 3cm (1.18")

  • Offline-matrix-remover-OKI-PRO1050

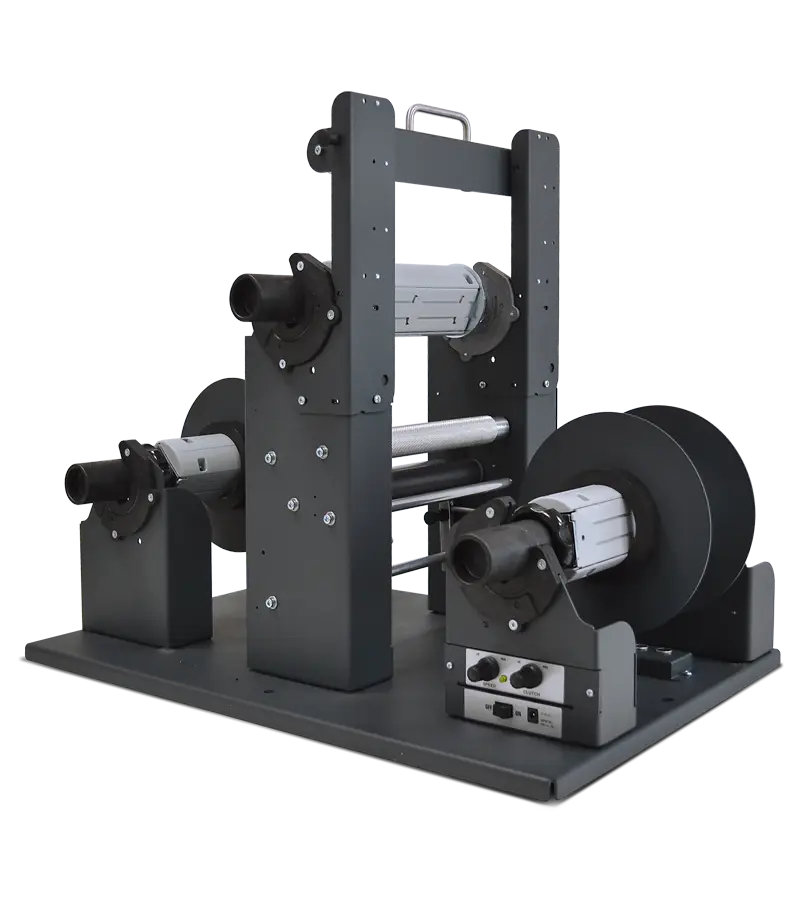

  • Offline Matrix remover for OKI Pro Series Printers (Pro1050, Pro1040)

    This new offline matrix remover version for Oki Pro Series gives the user the ability to remove the waste material from printed or blank pre die-cut rolls of labels up to 170mm wide onto 3” cardboard core and having an outside diameter up to 200mm. The finished labels will be rewinded face out only.

    The production of edge-to-edge printed labels on roll will become extremely easy and quick.

    Outside diameter up to 200mm (7.87”)

    Media width up to 170mm (6.69”)

    3” fixed core holder


    SIZE
    LENGTH WIDTH HEIGHT
    79cm (31.10") 45cm (17.71") 53cm (20.86")

  • Label-Rewinder-OKI-PRO1050

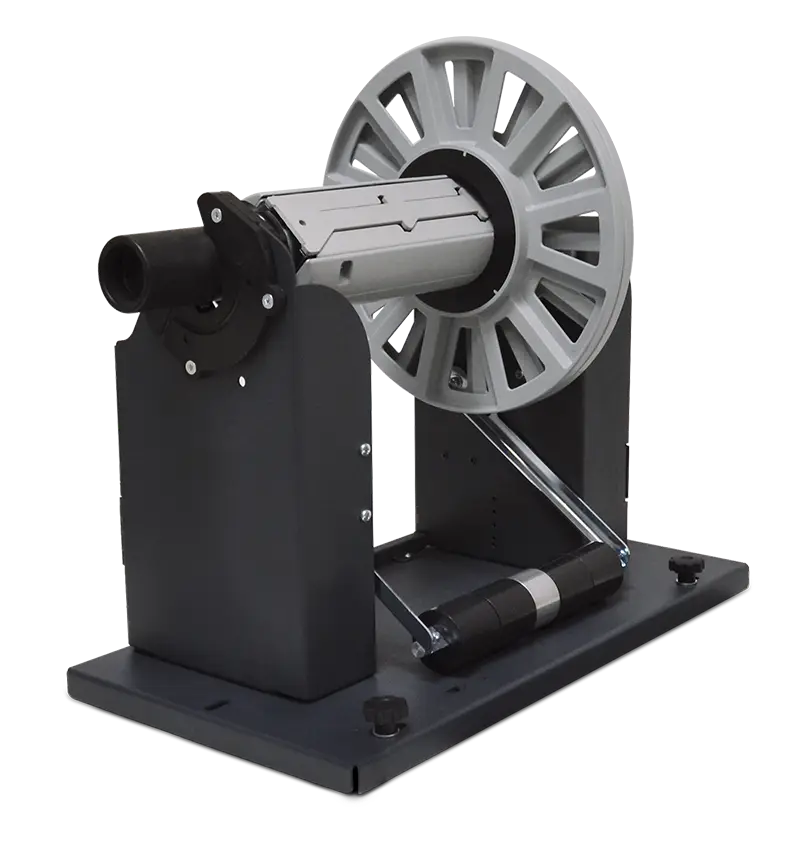

  • Label rewinder for OKI Pro Series Printers (Pro1050, Pro1040)

    The motorized core holder can handle printed media up to 170mm (6.69”) wide, and rewind rolls having an outside diameter up to 250mm (9.84”) with an internal 3” fixed core.

    The rewinded rolls will be face out only.
    The rewinding speed is synchronized automatically by the tension arm while when the roll of labels runs out, the rewinder stops by itself.

    The unit is equipped with an external auto-switching 100/240VAC - 2.5A at 24V power supply and an electronic circuit controls the functions.

    Thanks to its revolutionary design and toughness, the rewinder is perfect for high and heavy duty jobs.

    Outside diameter up to 250mm (9.84”)

    Media width up to 170mm (6.69”)

    3” fixed core holder


    SIZE
    LENGTH WIDTH HEIGHT
    28cm (11.02") 44cm (17.32") 40cm (15.74")
    SECOND PLATE
    34cm (13.38") 44cm (17.32") 3cm (1.18")

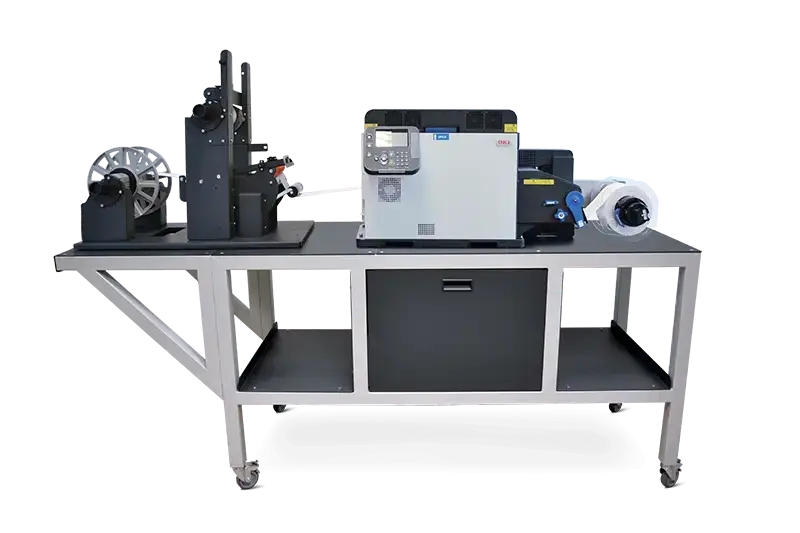

  • table-matrix-remover-OKI-pro1050

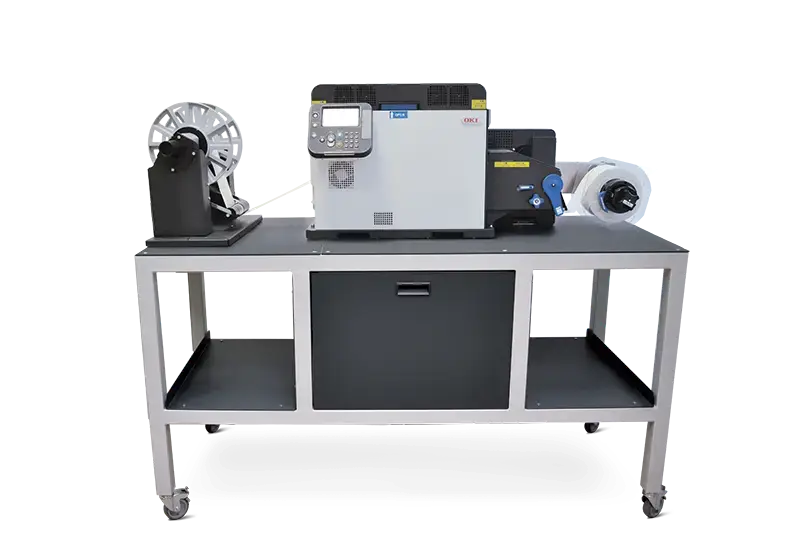

  • table-label-rewinder-OKI-pro1050

To ensure that both systems are perfectly aligned, we’ve included a tough iron table equipped with wheels to allow a smooth mobility, and added shelves to stock your printed materials for a complete printer station.



SIZE
LENGTH WIDTH HEIGHT
148cm (58.26") 58cm (22.83") 83cm (32.67")
Table with Extension (TBLEXT)
200cm (78.74") 58cm (22.83") 83cm (32.67")




  • virgo-compact-label-finishing-system

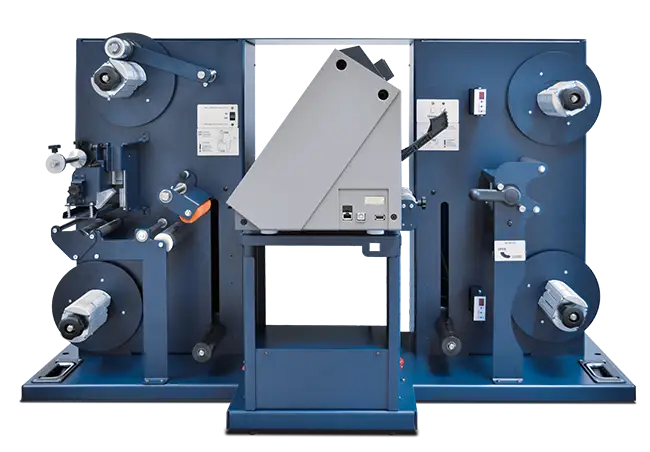

  • VIRGO - Desktop Label Finisher

    Virgo is a compact desktop finishing system that unwinds, laminates labels for durability, digitally die cuts, removes excess label material around each die-cut shape, slit, and rewinds offering you everything to professionally cut and finish labels.
